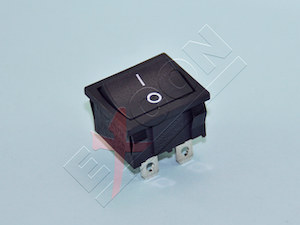

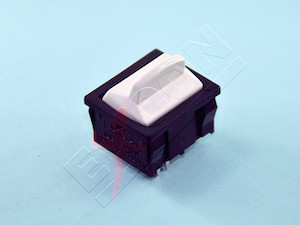

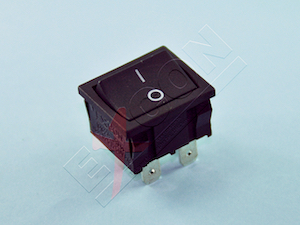

SS24 Series
Specification
Approval & Rating :
[ PDF Download ]
| Rating | Approval |
| 16(4)A 250VAC〜T125/55 |    |
PANEL CUTOUT DIMENSION :
|
 |
| PANEL THICKNESS | X | Y |
| 0.75~1.25mm |  |
 |
| 1.25~2.0mm |  |
 |
| 2.0~3.0mm |  |
|
Electrical :
(電氣性能)
| (接觸電阻) INITIAL CONTACT RESISTANCE | 20Ω Max |
| (操作力量) OPERATION FORCE | 500±300gf |
| (絶緣電阻) INSULATION RESISTANCE | 100mΩ Min 500VDC |
| (電氣壽命) ENDURANCE | 10,000 CYCLES |

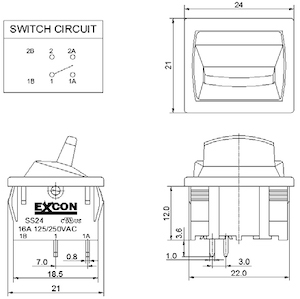

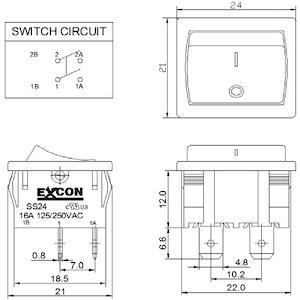

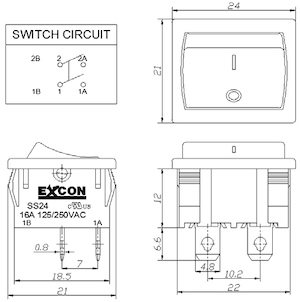

SPEC DRAWING(規格圖面) Unit: mm
 |
 |
 |
 |
 |
 |

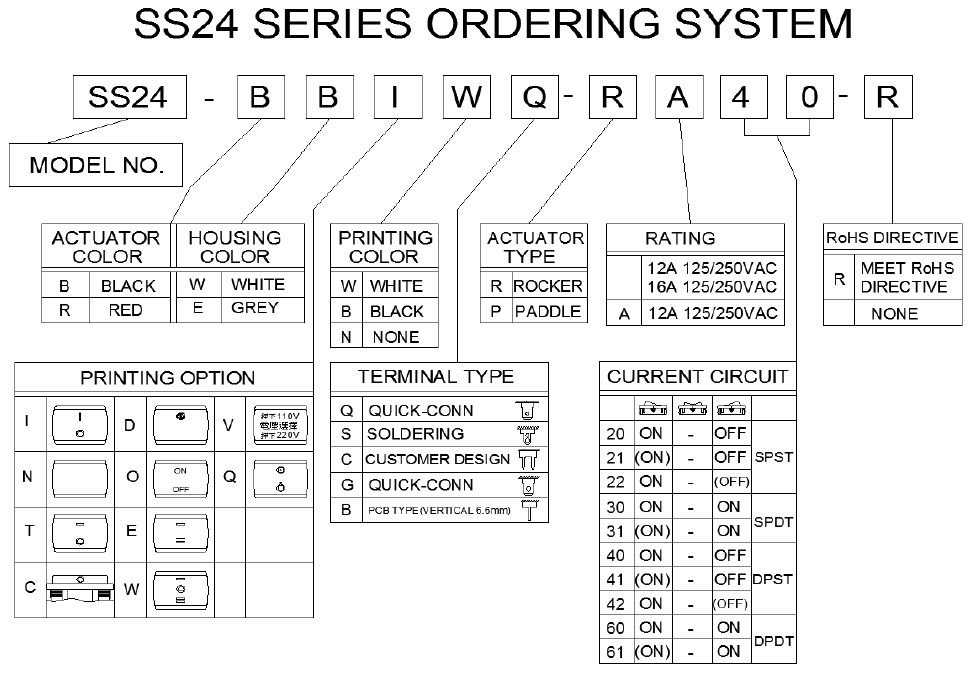

HOW TO ORDER (採購識別碼)
