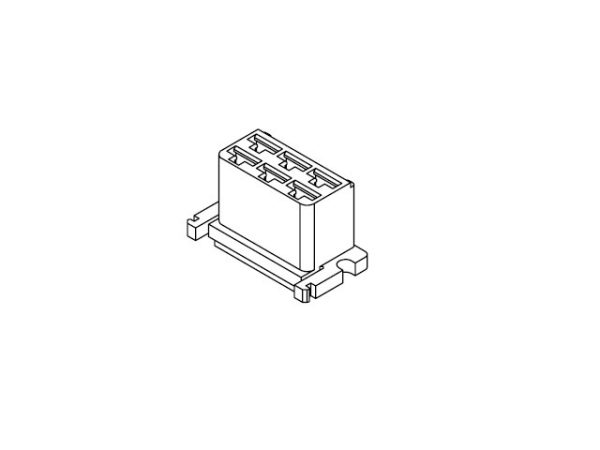

9250xxHSxxx
Specification
| Type | Housing |
| Pitch | 2.54 mm (0.100″) |
| Contact Type | Wire to Wire |
| Series | 9250 |
| Current rating | 5A AC / DC |
| Voltang rating | 600V AC / DC |
| Withstand voltage | 1500V AC / minute |
| Insulation resistance | 1000M Ω min |
| Contact resistance | 10m Ω max |
| Temperature range | -25℃ to + 105℃ (including temperature rise) |
| Applicable PC board thickness | 0.8 ~ 2.0 mm |
| Circuits | 02,06P |
| Material | Nylon 66 UL 94V0 / V2 |
| Color | Natural |
| Drawing | Drawing PDF Download |
