Drawing PDF Download

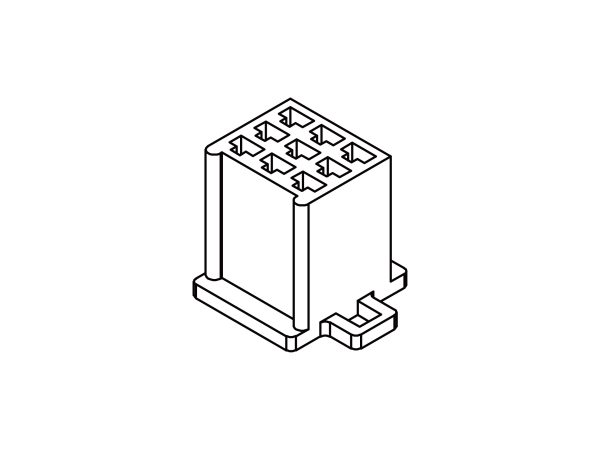

9110xxHMxxx
Specification
| Type | Housing |
| Pitch | 2.54 mm (0.100″) |
| Contact Type | Wire to Board |
| Series | 9110 |
| Current rating | 5A AC / DC |
| Voltang rating | 600V AC / DC |
| Withstand voltage | 1500V AC / minute |
| Temperature range | -40℃ to + 120℃ |
| Circuits | 02,03,04,06,09P |
| Material | Nylon 66 UL 94V-2 |
| Color | Natural |
| Drawing | Drawing PDF Download |
