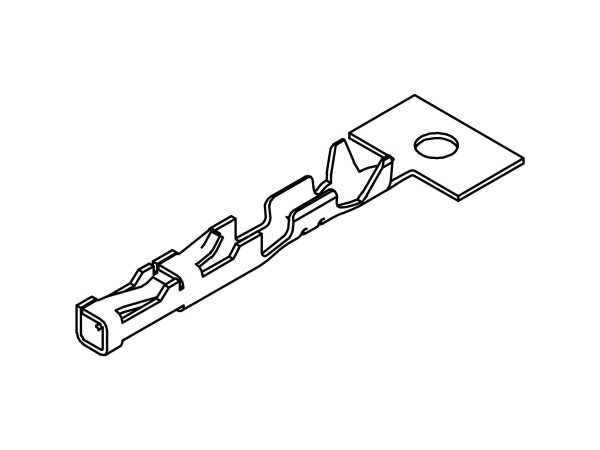

    882200TSxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 2.54 mm (0.100″)
    Contact Type Wire to Board
    Series 8822
    Current rating 1A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm (0.039″ to 0.063″)
    Material Phosphor bronze
    Drawing Drawing PDF Download
    Applicable wires AWG #26~#28
    Insulation O.D 0.8 ~ 1.2 mm
    Finishing Tin Pre-plated
