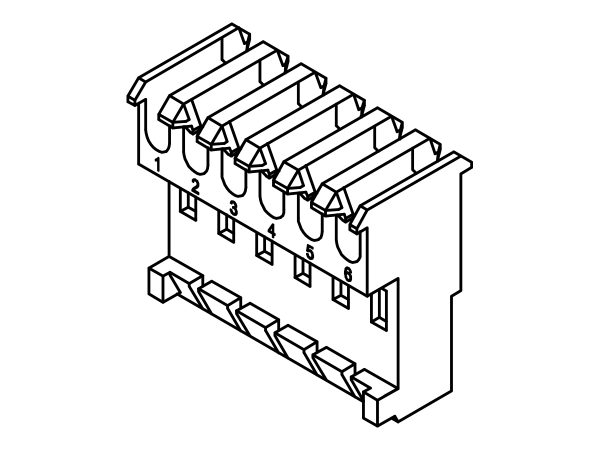

    7805xxHAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.7
    Type Housing
    Pitch 3.96 mm (0.156″)
    Contact Type IDC Wire to Board
    Series 7805
    Current rating 5A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm (0.032″ to 0.063″)
    Circuits 02 – 24P
    Material Nylon 66 UL 94V0 / V2
    Drawing Drawing PDF Download
    Applicable wires AWG #18~#26
