    660900TMxxx

    6609xxLAxxx

    660900TNxxx

    660900THxxx

    660900TBxxx

    660900TZxxx

    660900TJxxx

    660900TPxxx

    660900TAxxx

    6609xxHPxxx

    6609xxHFxxx

    6609xxHMxxx
    Series

    660901HM

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

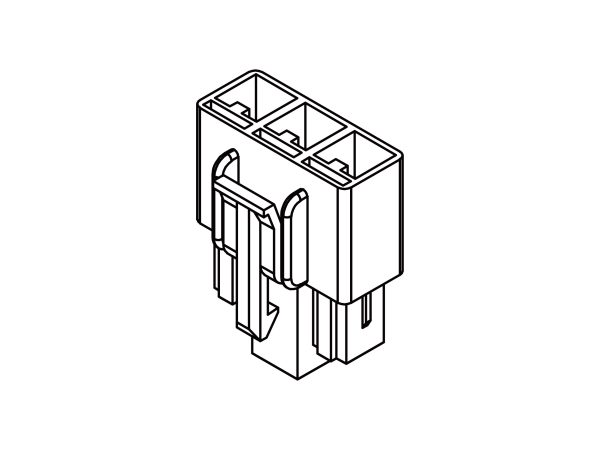

    6609xxHMxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Housing
    Pitch 6.2-7.3 mm (0.244-0.287″)
    Contact Type Wire to Wire
    Series 6609
    Current rating 4A AC / DC
    Voltang rating 300V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 100M Ω min
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable panel thickness 0.8 ~ 2.0 mm
    Circuits 01,02,03,04,06P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
