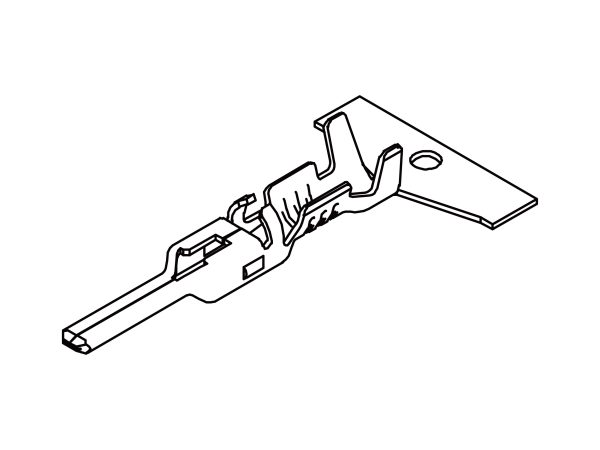

    660900TZxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 6.2-7.3 mm (0.244-0.287″)
    Contact Type Wire to Wire
    Series 6609
    Current rating 4A AC / DC
    Voltang rating 300V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 100M Ω min
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable panel thickness 0.8 ~ 2.0 mm
    Material Brass / Phosphor bronze
    Drawing Drawing PDF Download
    Applicable wires AWG #20~#24
    Insulation O.D 1.8 ~ 2.5 mm
    Finishing Tin Pre-plated
