| UL Approval |
E237407 Section.7 |

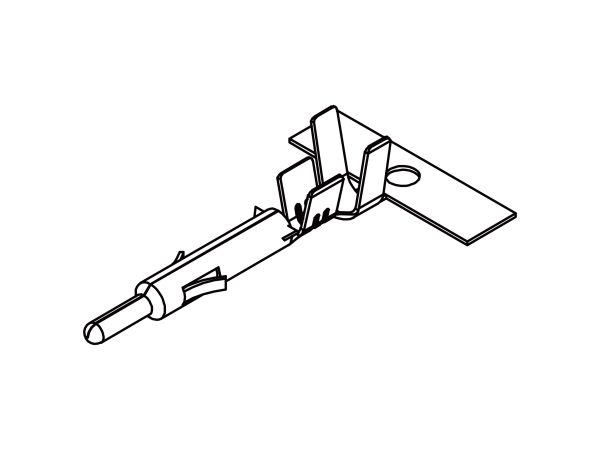

| Type |
Terminal |
| Pitch |
4.14 mm (0.163″) |
| Contact Type |
Wire to Board & Wire to Wire |
| Series |
6608 |
| Current rating |
5A AC / DC |
| Voltang rating |
600V AC / DC |
| Withstand voltage |
1500V AC / minute |
| Insulation resistance |
1000M Ω min |
| Contact resistance |
10m Ω max |
| Temperature range |
-25℃ to + 105℃ (including temperature rise) |
| Applicable panel thickness |
0.8 ~ 2.0 mm |
| Material |
Brass / Phosphor bronze |
| Drawing |
Drawing PDF Download |
| Applicable wires |
AWG #18~#22 |
| Insulation O.D |
1.7 ~ 3.0 mm |
| Finishing |
Tin Pre-plated |
