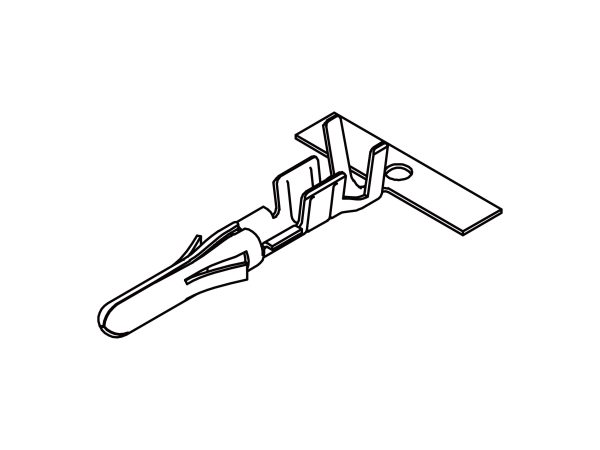

    660700TPxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 5.03 mm (0.198″)
    Contact Type Wire to Wire
    Series 6607
    Current rating 5A AC / DC
    Voltang rating 600V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable panel thickness 0.8 ~ 2.0 mm
    Material Brass / Phosphor bronze
    Drawing Drawing PDF Download
    Applicable wires AWG #20~#24
    Insulation O.D 1.3 ~ 1.7 mm
    Finishing Tin Per-plated
