| UL Approval |
E237407 Section.5 |
| Type |
Wafer |
| Pitch |
6.35 mm (0.250″) |
| Contact Type |
Wire to Board & Wire to Wire |
| Series |

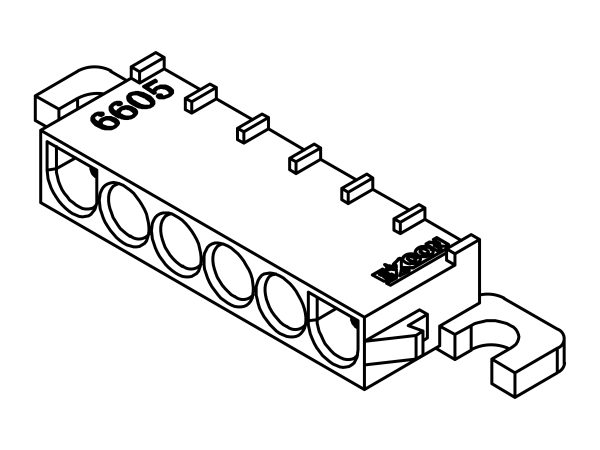

6605 |
| Current rating |
5A AC / DC |
| Voltang rating |
600V AC / DC |
| Withstand voltage |
1500V AC / minute |
| Insulation resistance |
1000M Ω min |
| Contact resistance |
10m Ω max |
| Temperature range |
-40℃ to + 105℃ (including temperature rise) |
| Applicable panel thickness |
1.0 ~ 1.6 mm |
| Circuits |
02 – 06P |
| Material |
Nylon 66 UL 94V-0 |
| Color |
Natural |
| Drawing |
Drawing PDF Download |
| Applicable wires |
AWG #14~#24 |
| Insulation O.D |
1.5 ~ 3.0 mm |
