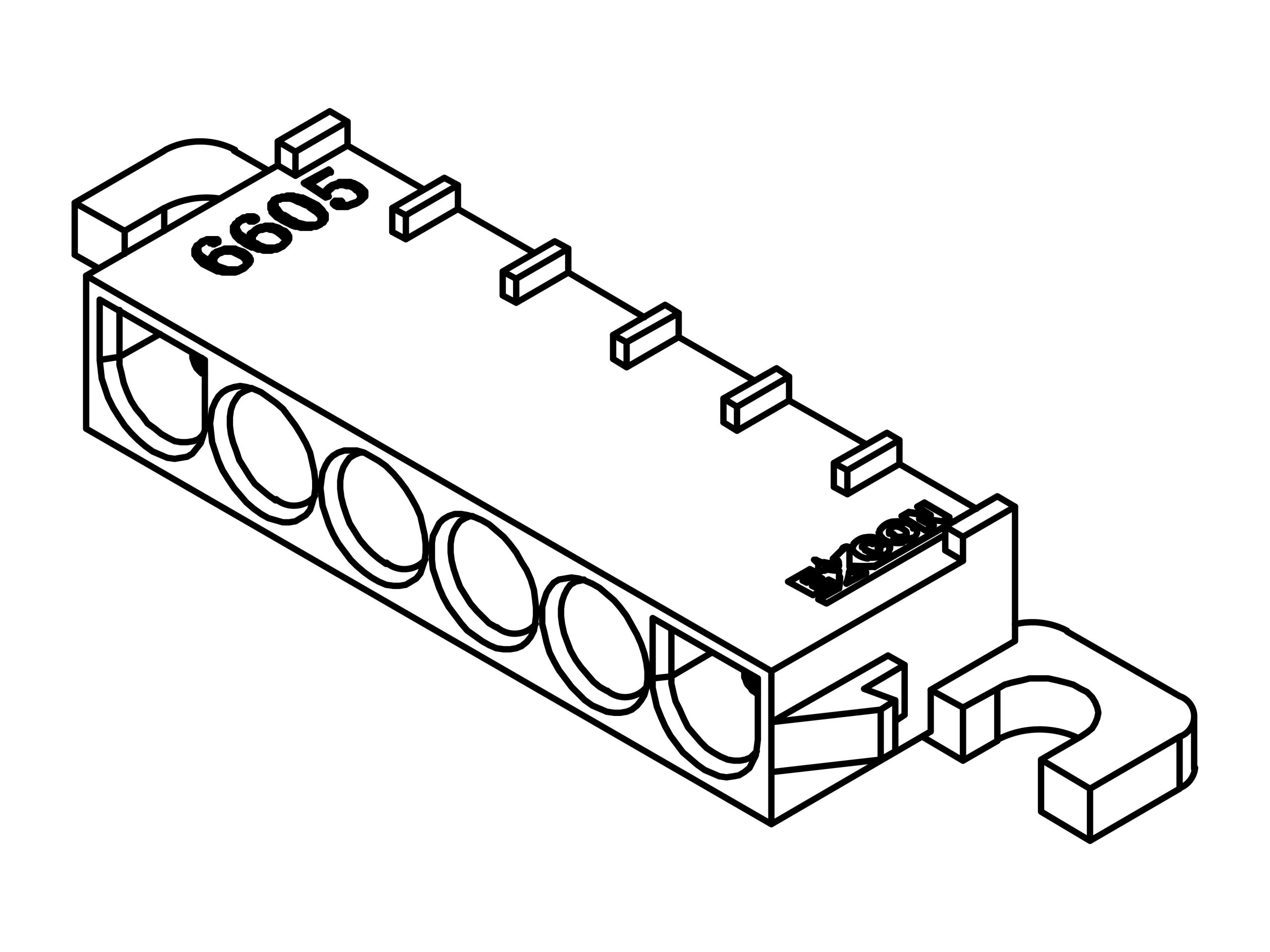

Series

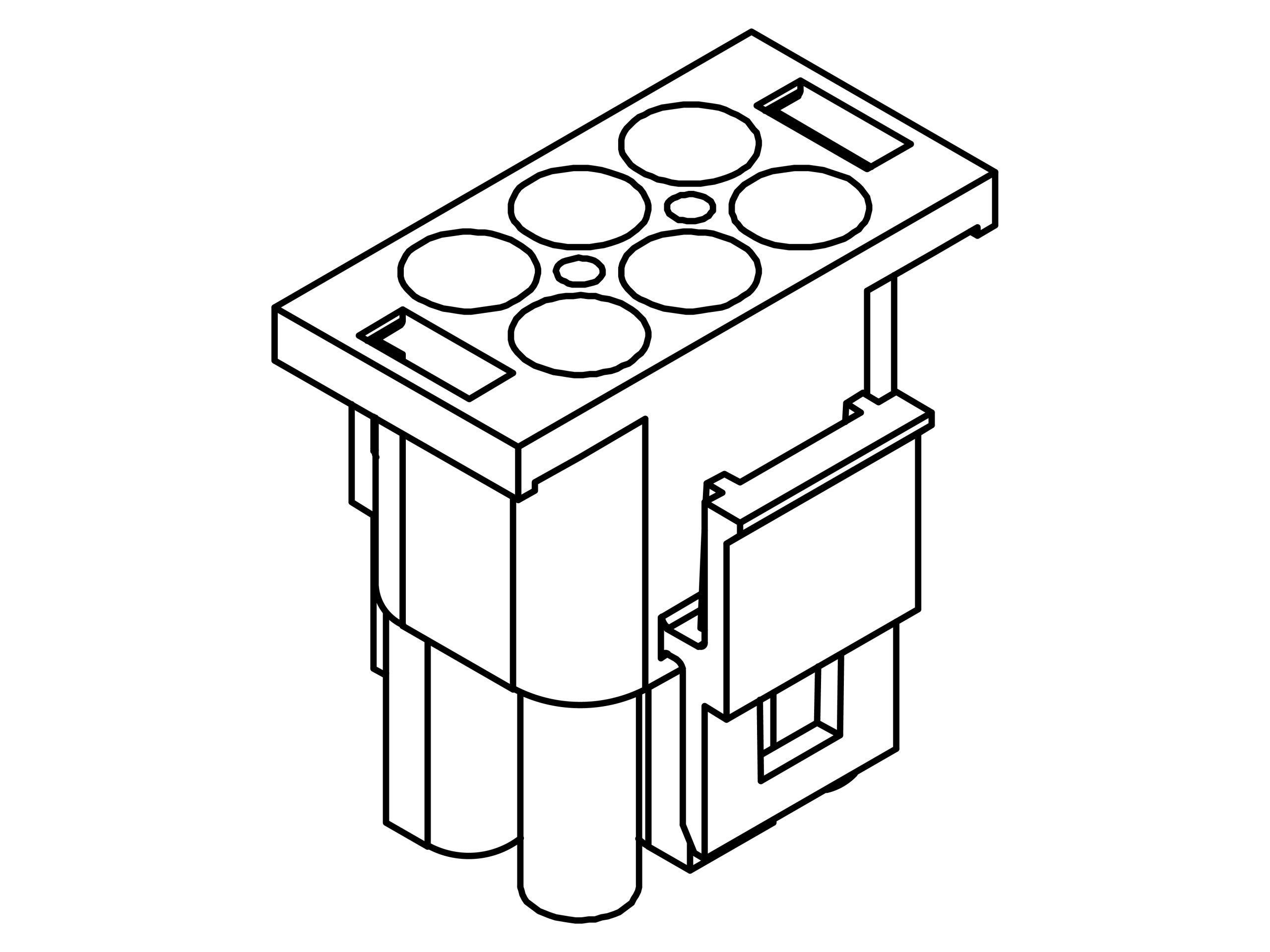

6605xxHMxxx
Specification
| UL Approval | E237407 Section.5 |
| Type | Housing |
| Pitch | 6.35 mm (0.250″) |
| Contact Type | Wire to Board & Wire to Wire |
| Series | 6605 |
| Current rating | 5A AC / DC |
| Voltang rating | 600V AC / DC |
| Withstand voltage | 1500V AC / minute |
| Insulation resistance | 1000M Ω min |
| Contact resistance | 10m Ω max |
| Temperature range | -40℃ to + 105℃ (including temperature rise) |
| Applicable panel thickness | 1.0 ~ 1.6 mm |
| Circuits | 01 – 15P |
| Material | Nylon 66 UL 94V0 / V2 |
| Color | Natural |
| Drawing | Drawing PDF Download |
| Applicable wires | AWG #14~#24 |
| Insulation O.D | 1.5 ~ 3.0 mm |
