    660100TAxxx

    6601xxHMxxx

    6601xxHPxxx

    6601xxHFxxx

    660100TBxxx
    Series

    660100TB

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

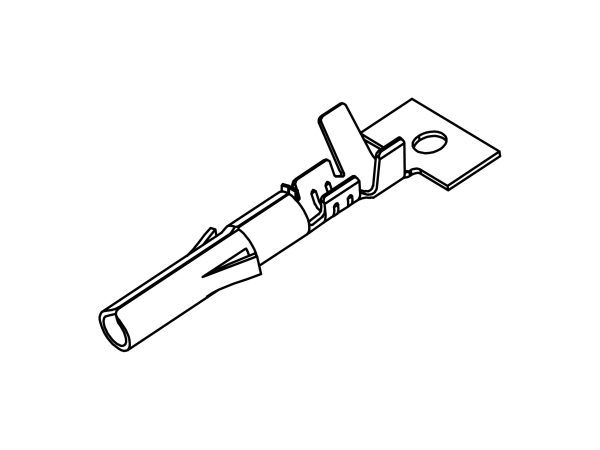

    660100TBxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.5
    Type Terminal
    Pitch 4.80 mm (0.189″)
    Contact Type Wire to Wire
    Series 6601
    Current rating 5A AC / DC
    Voltang rating 600V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable panel thickness 0.8 ~ 2.0 mm
    Material Brass / Phosphor bronze
    Drawing Drawing PDF Download
    Applicable wires AWG #18~#24
    Insulation O.D 1.5 ~ 3.1 mm
    Finishing Tin Pre-plated
