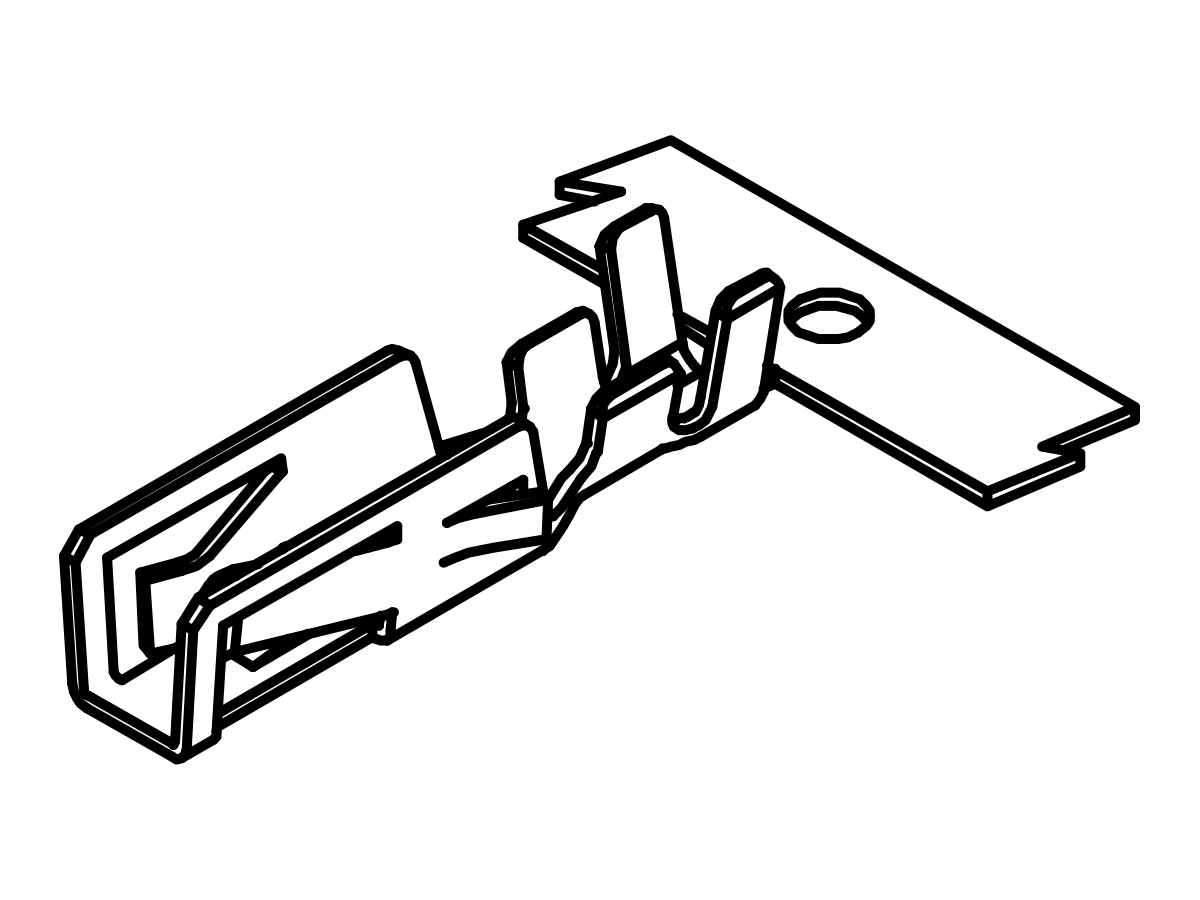

    509000TCxxx

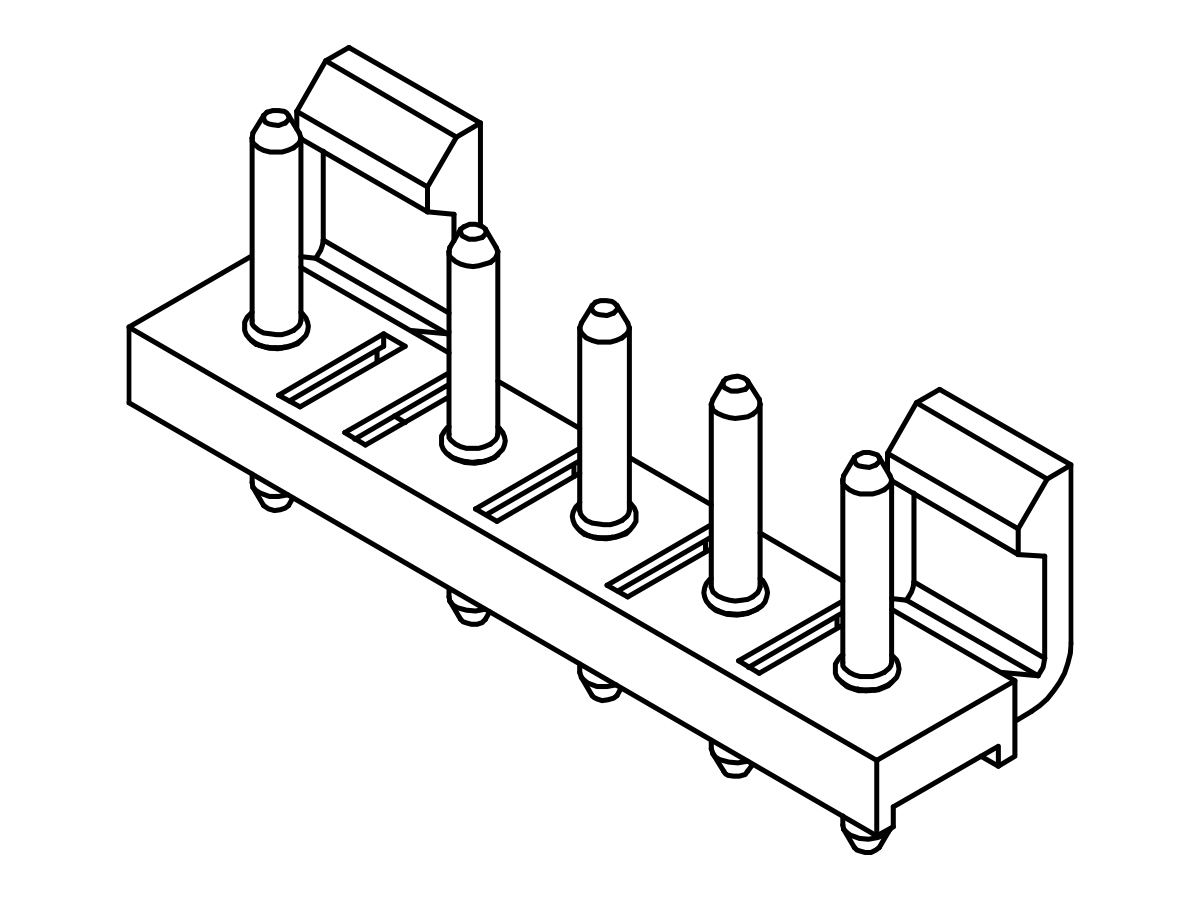

    5090xxWVxxx

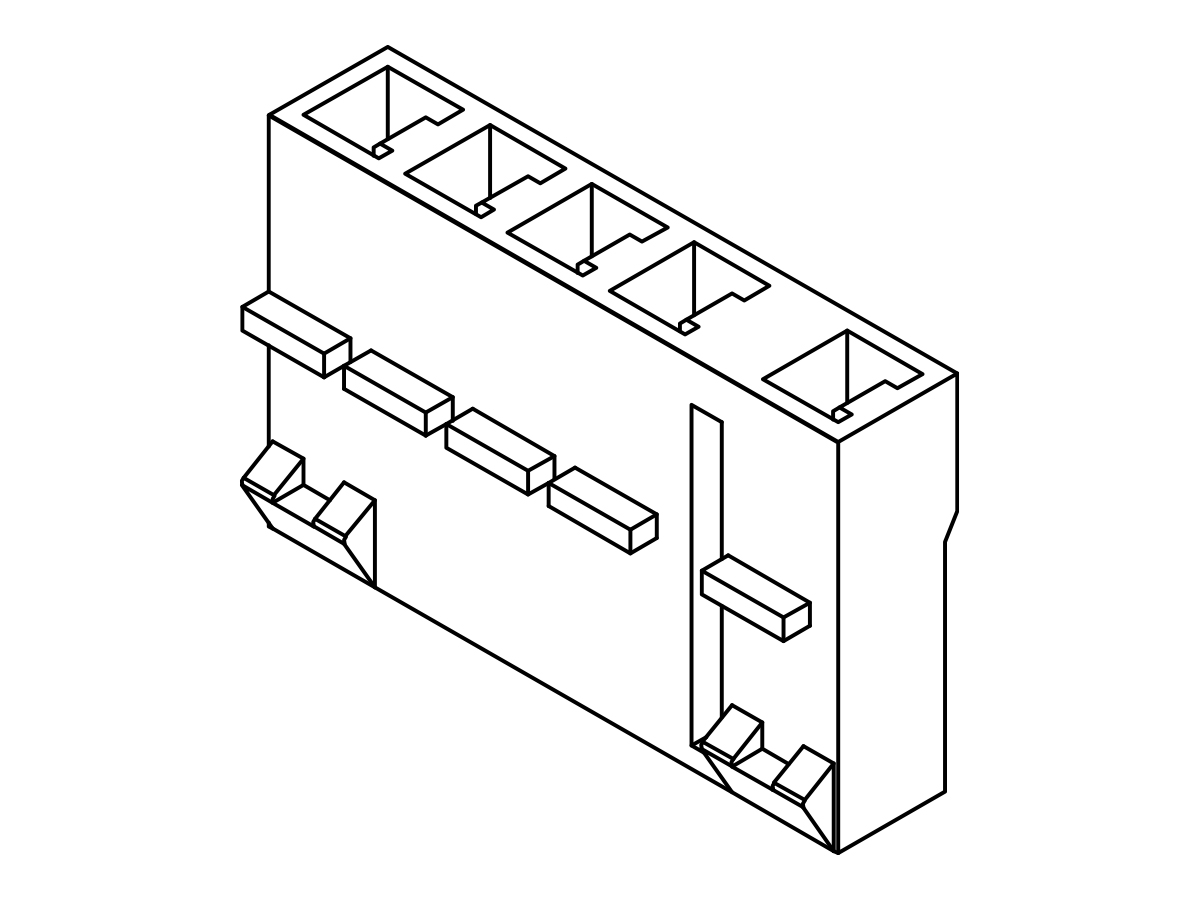

    5090xxHAxxx

    5090xxWTxxx
    Series

    509001WT

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

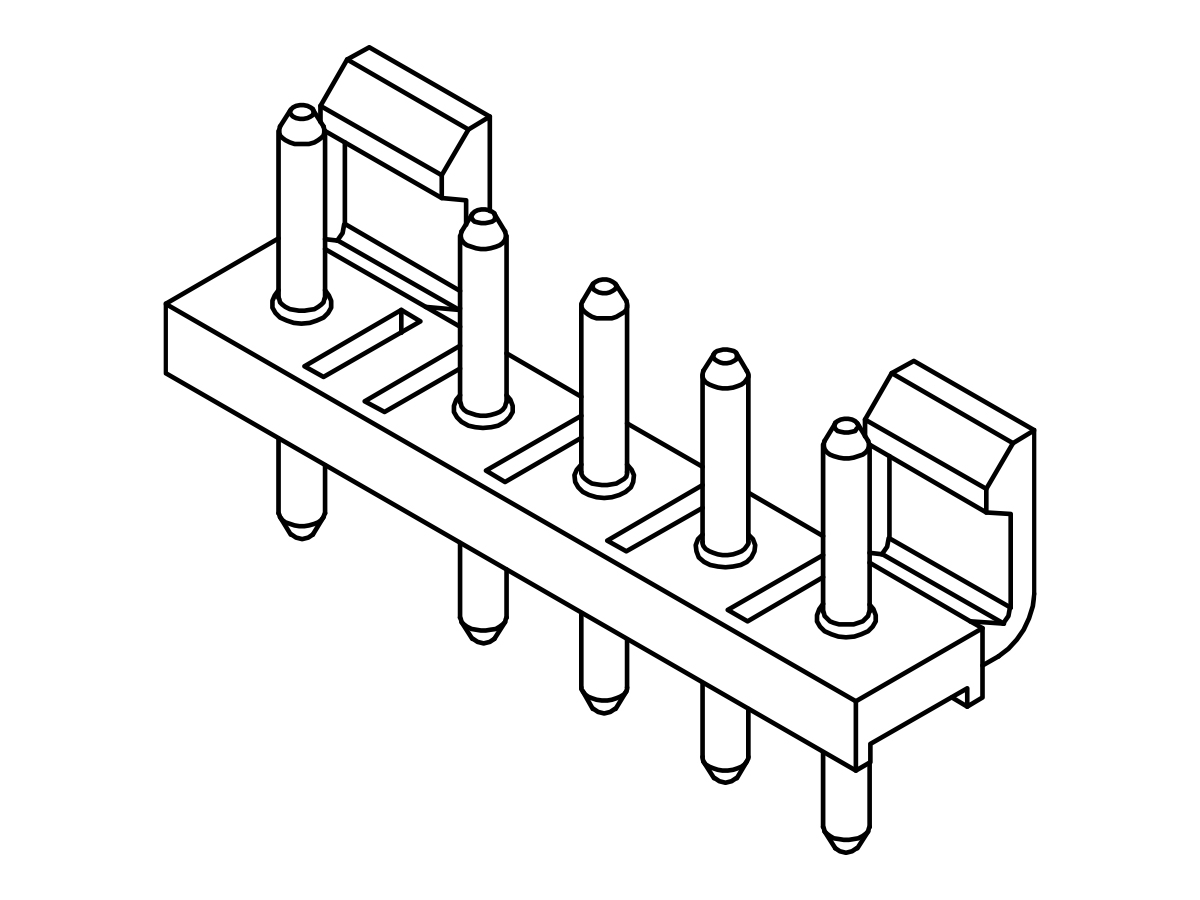

    5090xxWTxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Wafer
    Pitch 7.5-5.0 mm (0.295-0.197″)
    Contact Type Wire to Board
    Series 5090
    Current rating 9A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm (0.039″ to 0.063″)
    Circuits 01 – 15P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #18~#24
