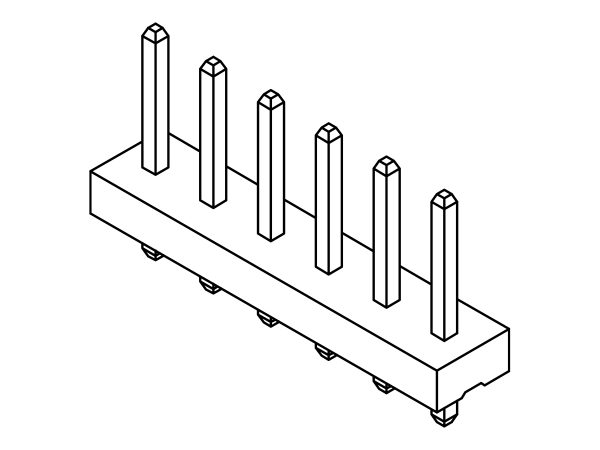

    5085xxWAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Wafer
    Pitch 5.08 mm (0.200″)
    Contact Type Wire to Board
    Series 5085
    Current rating 5A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm (0.039″ to 0.063″)
    Circuits 02 – 12P
    Material Nylon 66 UL 94V0 / V2
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #16~#26
    Insulation O.D 1.3 ~ 2.8 mm
