Series
Drawing PDF Download

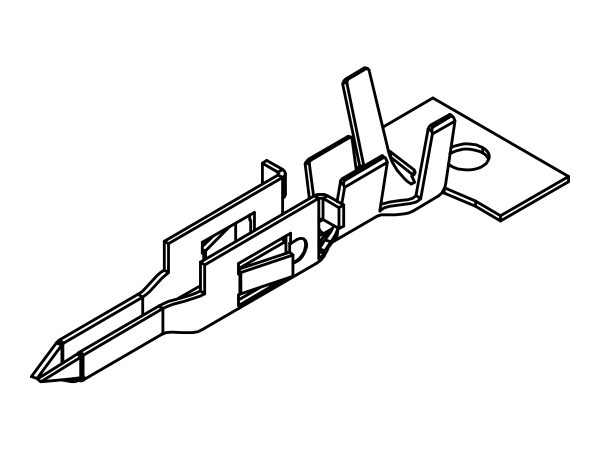

420100TAxxx
Specification
| UL Approval | E237407 Section.1 |
| Type | Terminal |
| Pitch | 4.20 mm (0.165″) |
| Contact Type | Wire to Board & Wire to Wire |
| Series | 4201 |
| Current rating | 5A AC / DC |
| Voltang rating | 600V AC / DC |
| Withstand voltage | 1500V AC / minute |
| Insulation resistance | 1000M Ω min |
| Contact resistance | 10m Ω max |
| Temperature range | -40℃ to + 105℃ (including temperature rise) |
| Applicable PC board thickness | 1.0 ~ 1.6 mm (0.039″ to 0.063″) |
| Material | Brass / Phosphor bronze |
| Drawing | Drawing PDF Download |
| Applicable wires | AWG #18~#24 |
| Insulation O.D | 1.1 ~ 2.1 mm |
| Finishing | Tin Pre-plated |
