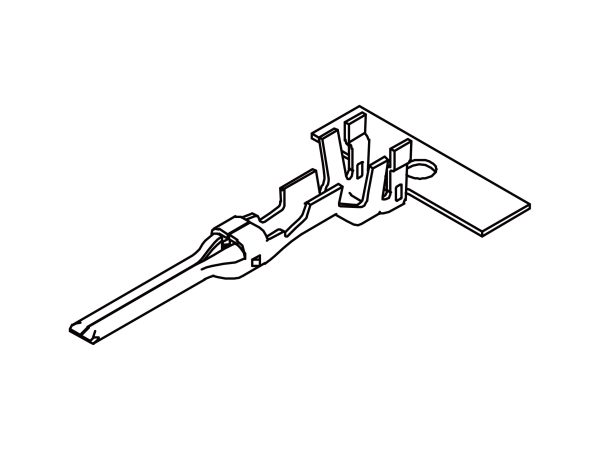

    396900TPxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 3.96 mm (0.156″)
    Contact Type Wire to Wire
    Series 3969
    Current rating 5A AC / DC
    Voltang rating 300V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -30℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm (0.031″ to 0.063″)
    Material Brass / Phosphor bronze
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#26
    Insulation O.D 1.3 ~ 2.0 mm
    Finishing Tin Pre-plated
