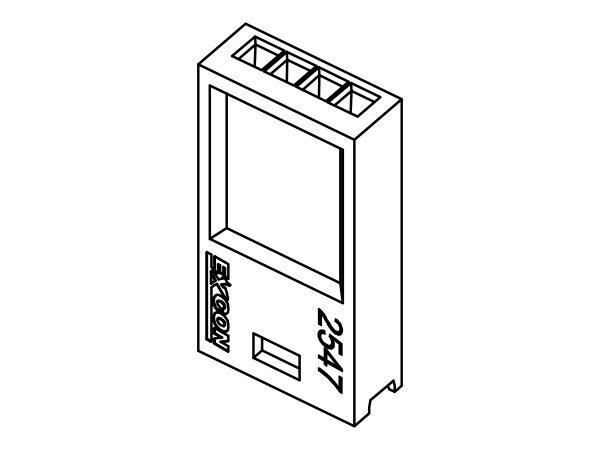

    2547xxHFxxx

    SKU N/A Categories , ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.8
    Type Housing
    Pitch 2.54 mm (0.100″)
    Contact Type Wire to Board
    Series 2547
    Current rating 3A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 800V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm (0.032″ to 0.063″)
    Circuits 02 – 22P
    Material PBT UL 94V-0
    Color Black
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#26
    Insulation O.D 0.9 ~ 1.55 mm
