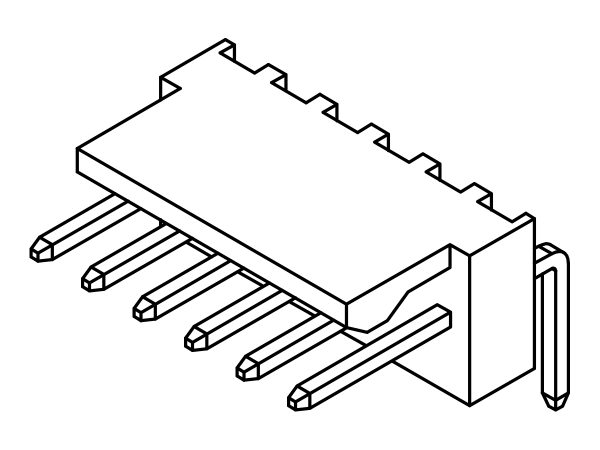

    2546xxWRxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.6
    Type Wafer
    Pitch 2.54 mm (0.100″)
    Contact Type Wire to Board
    Series 2546
    Current rating 3A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm (0.039″ to 0.063″)
    Circuits 02 – 20P
    Material Nylon 66 UL 94V0 / V2
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#28
    Insulation O.D 1.2 ~ 1.7 mm
