Series
Drawing PDF Download

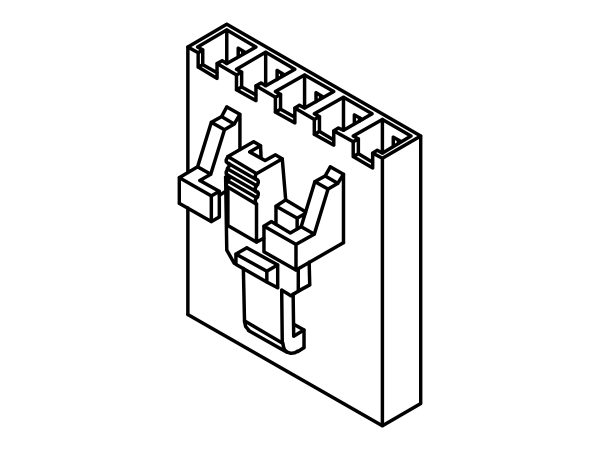

2545xxHAxxx
Specification
| UL Approval | E237407 Section.1 |
| Type | Housing |
| Pitch | 2.54 mm (0.100″) |
| Contact Type | Wire to Board & Wire to Wire |
| Series | 2545 |
| Current rating | 3A AC / DC |
| Voltang rating | 250V AC / DC |
| Withstand voltage | 1000V AC / minute |
| Insulation resistance | 1000M Ω min |
| Contact resistance | 10m Ω max |
| Temperature range | -40℃ to + 105℃ (including temperature rise) |
| Applicable PC board thickness | 1.0 ~ 1.6 mm (0.039″ to 0.063″) |
| Circuits | 02 – 12P |
| Material | PBT UL 94V-0 |
| Color | Black |
| Drawing | Drawing PDF Download |
| Applicable wires | AWG #24~#28 |
| Insulation O.D | 1.2 ~ 1.7 mm |
