| UL Approval |
E237407 Section.1 |

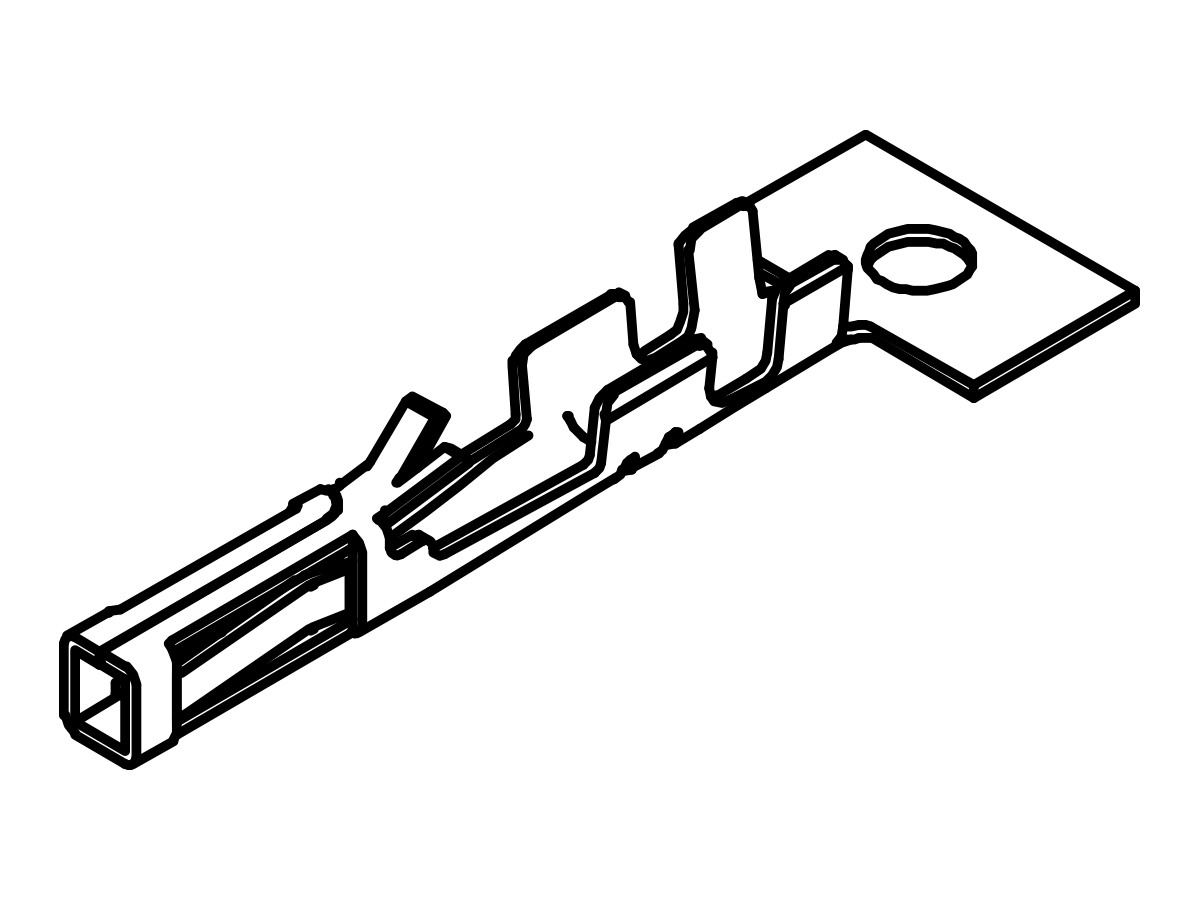

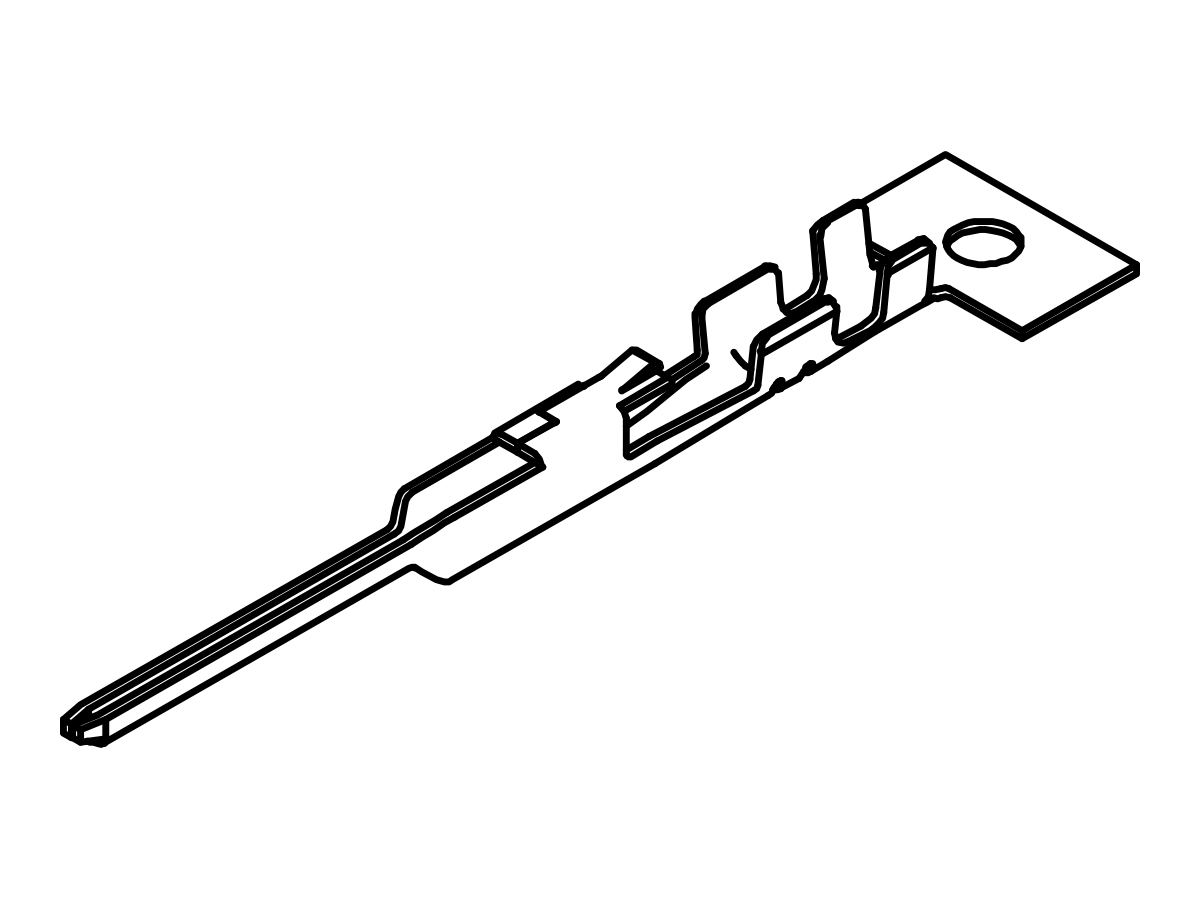

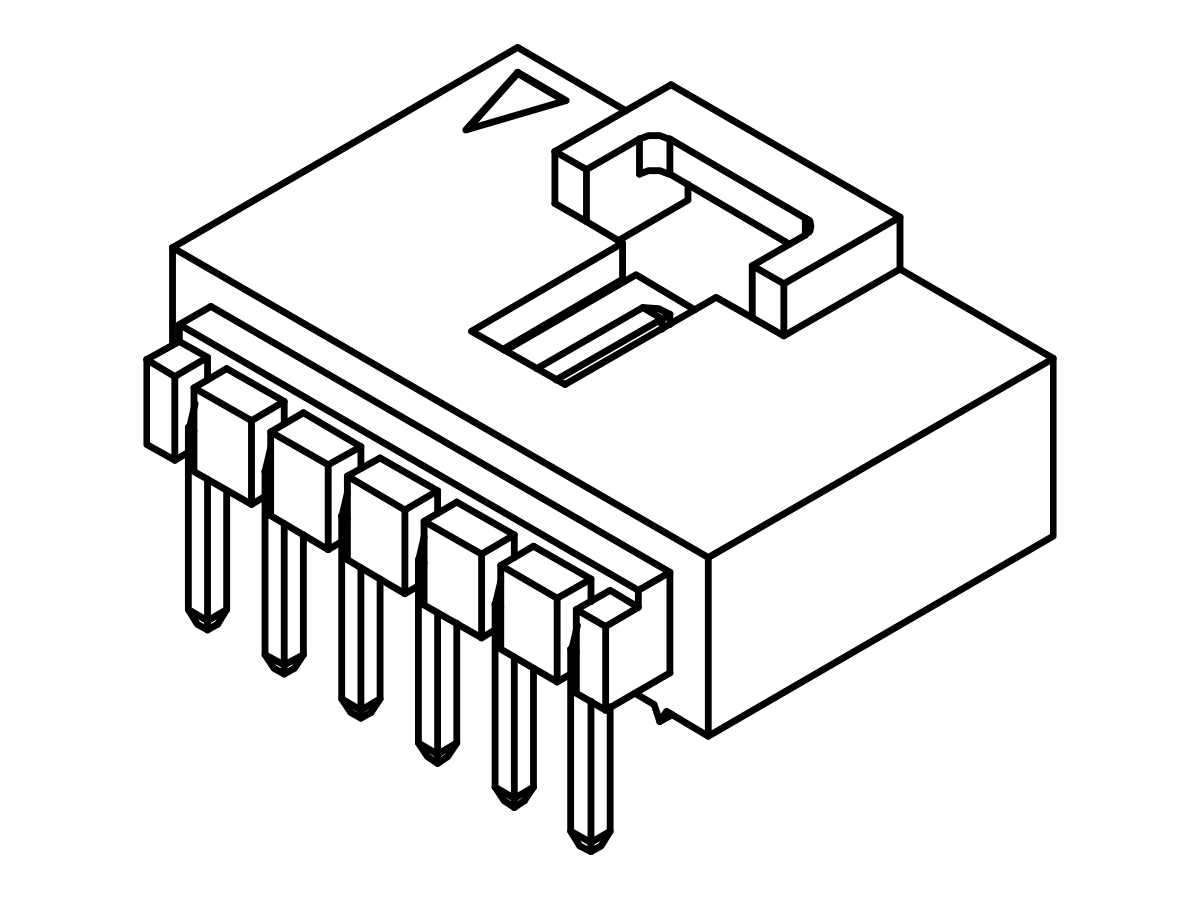

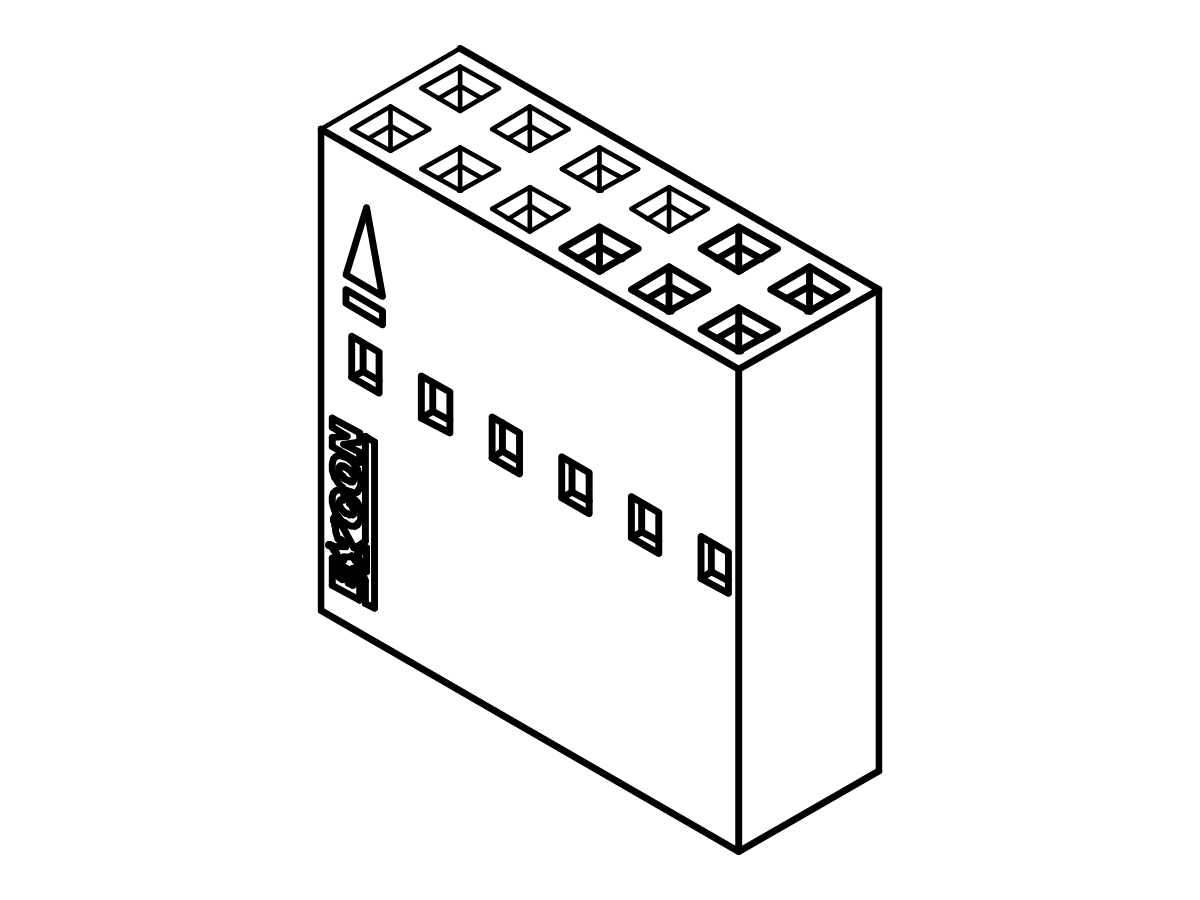

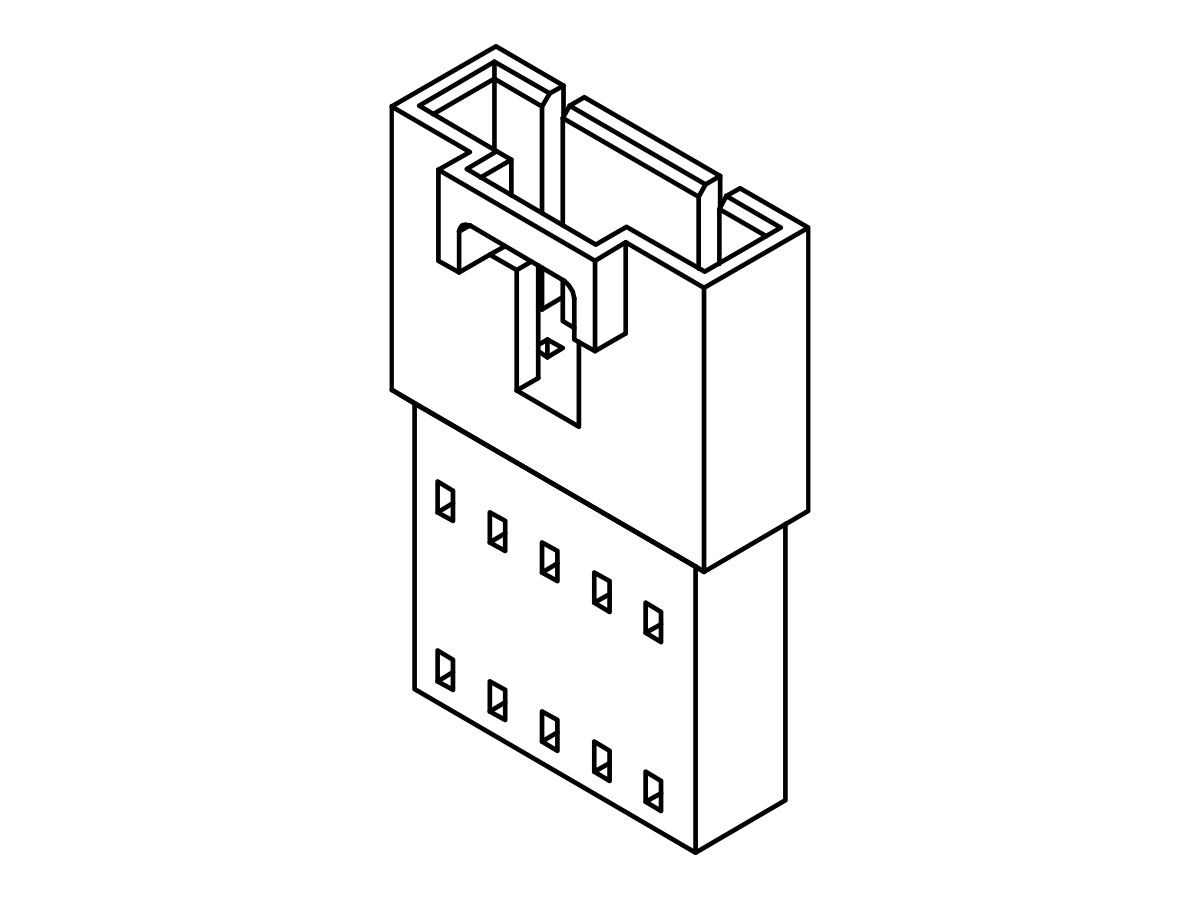

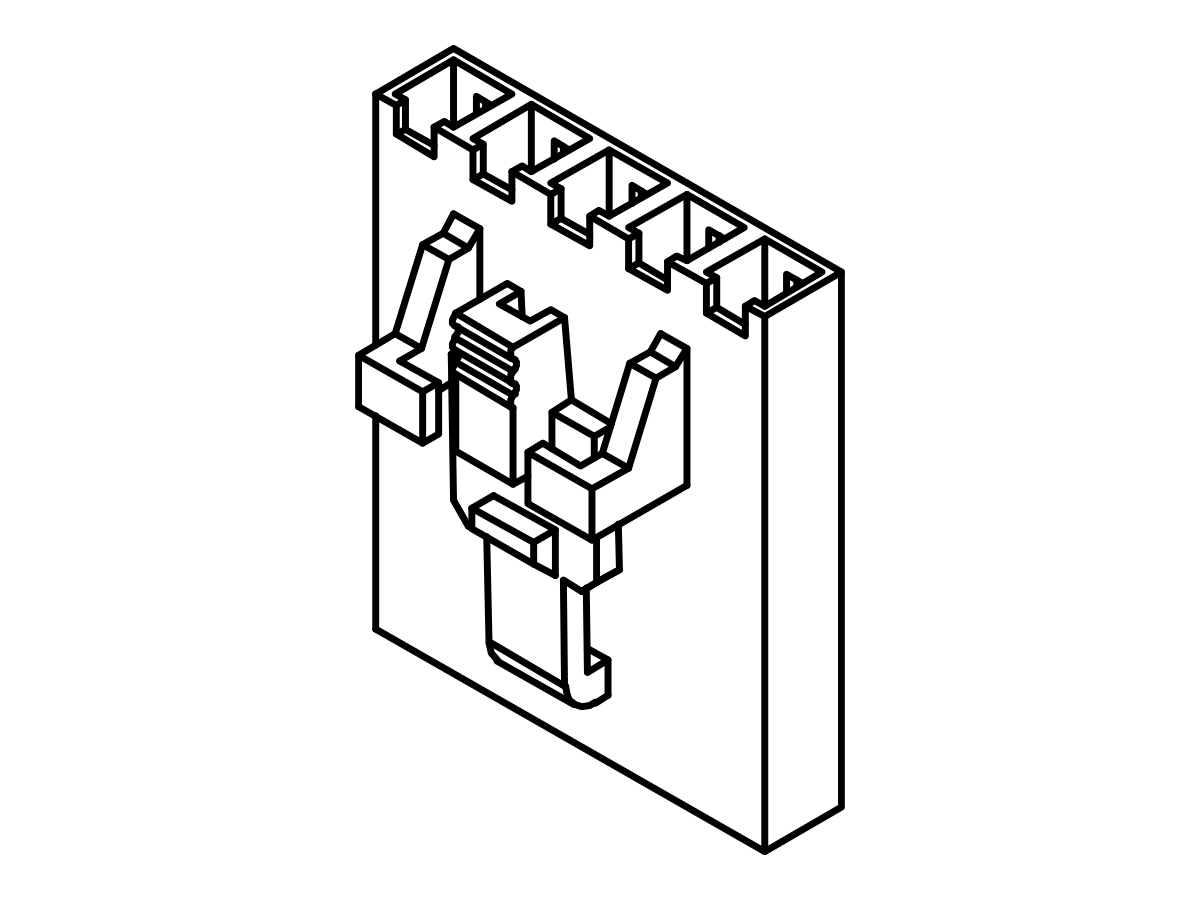

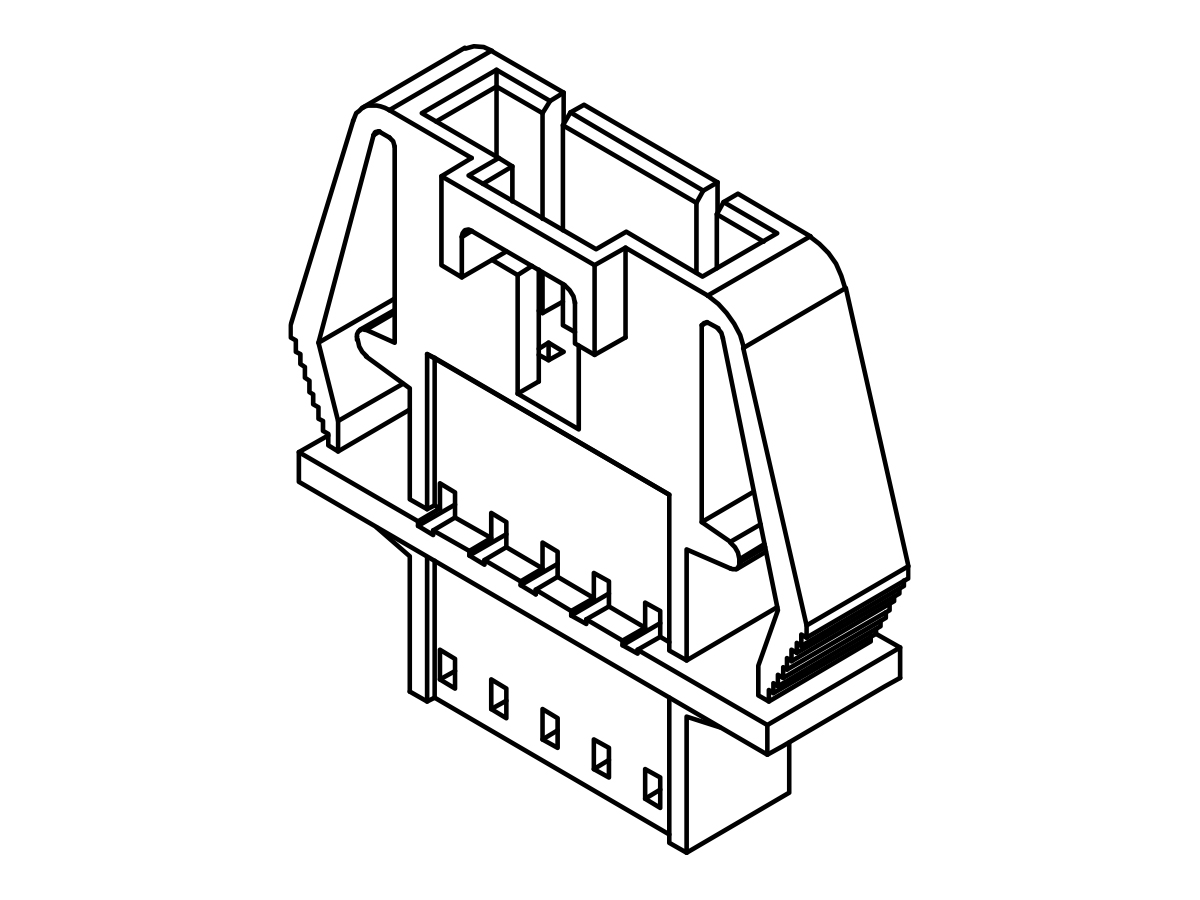

| Type |
Terminal |
| Pitch |
2.54 mm (0.100″) |
| Contact Type |
Wire to Board & Wire to Wire |
| Series |
2545 |
| Current rating |
3A AC / DC |
| Voltang rating |
250V AC / DC |
| Withstand voltage |
1000V AC / minute |
| Insulation resistance |
1000M Ω min |
| Contact resistance |
10m Ω max |
| Temperature range |
-40℃ to + 105℃ (including temperature rise) |
| Applicable PC board thickness |
1.0 ~ 1.6 mm (0.039″ to 0.063″) |
| Material |
Phosphor bronze |
| Drawing |
Drawing PDF Download |
| Applicable wires |
AWG #22~#28 |
| Insulation O.D |
1.2 ~ 1.7 mm |
| Finishing |
Tin pre-plated / Gold flash |
