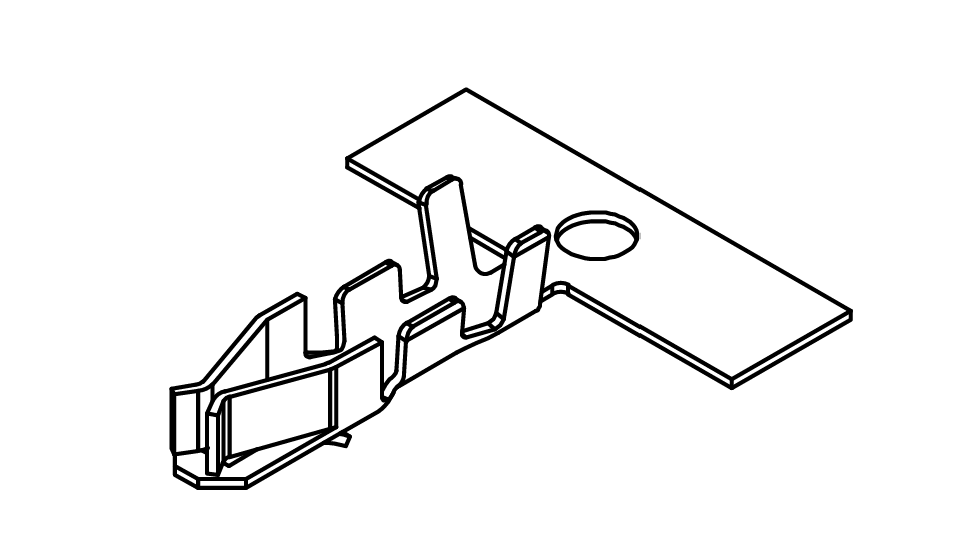

    251900TCxxx

    SKU N/A Categories ,

    This product is currently out of stock and unavailable.

    Specification

    Type Terminal
    Pitch 2.50 mm (0.098 in)
    Contact Type Wire to Board
    Series 2519
    Current rating 3A
    Voltang rating 250V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.2 ~ 1.6 mm
    Material Brass / Phosphor
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#28
    Insulation O.D 1.0 ~ 1.5 mm
    Finishing Tin Pre-plated
