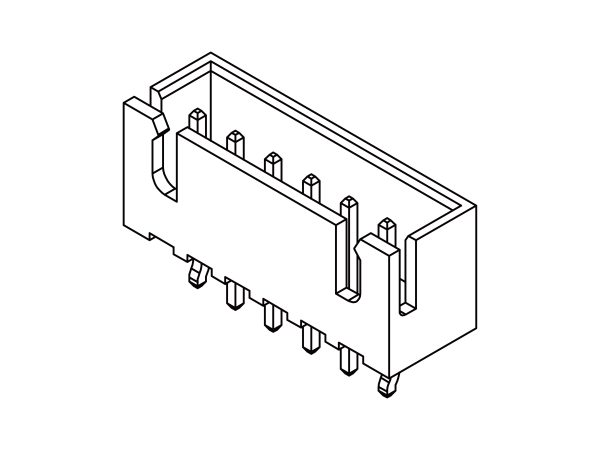

    2501xxWVxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.1
    Type Wafer
    Pitch 2.50 mm (0.098″)
    Contact Type Wire to Board
    Series 2501
    Current rating 3A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm (0.031″ to 0.063″)
    Circuits 02 – 20P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#30
    Insulation O.D 0.9 ~ 1.9 mm
