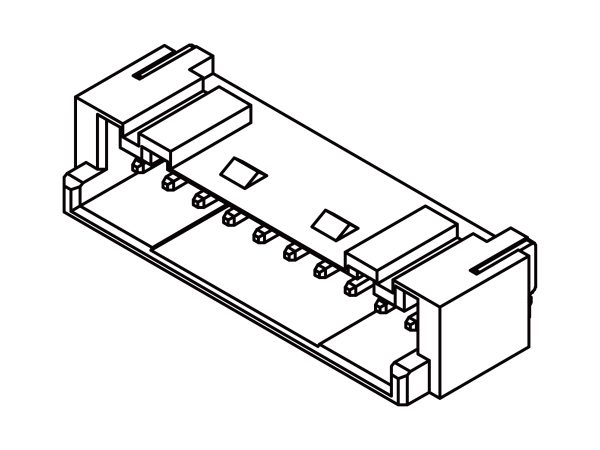

    201100WExxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 2.00 mm (0.079″)
    Contact Type Wire to Board
    Series 2011
    Current rating 3A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 800V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm (0.031″ to 0.063″)
    Material Phosphor
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#28
    Insulation O.D 0.9 ~ 1.5 mm
    Finishing Tin plated / Tin Pre-plated
