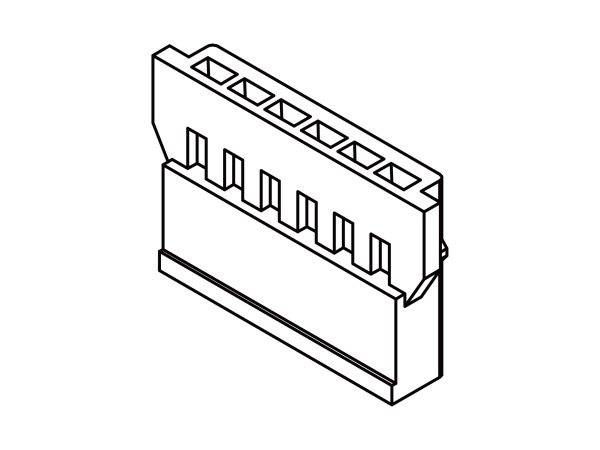

    2009xxHMxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Housing
    Pitch 2.00 mm (0.079″)
    Contact Type Wire to Wire
    Series 2009
    Current rating 2A AC / DC
    Voltang rating 250V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Circuits 02 – 10P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
