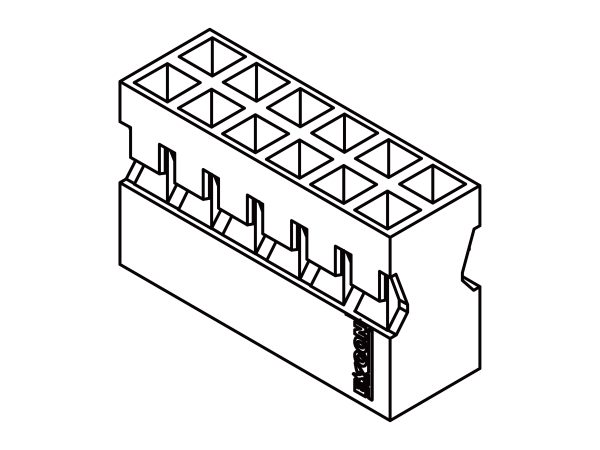

    2005xxHAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Housing
    Pitch 2.00 mm (0.079″)
    Contact Type Wire to Board
    Series 2005
    Current rating 2.5A AC / DC
    Voltang rating 200V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm (0.039″ to 0.063″)
    Circuits 04 – 40P
    Material Nylon 66 UL 94V-0
    Color Black
    Drawing Drawing PDF Download
    Applicable wires AWG #26~#30
    Insulation O.D 0.9 ~ 1.3 mm
