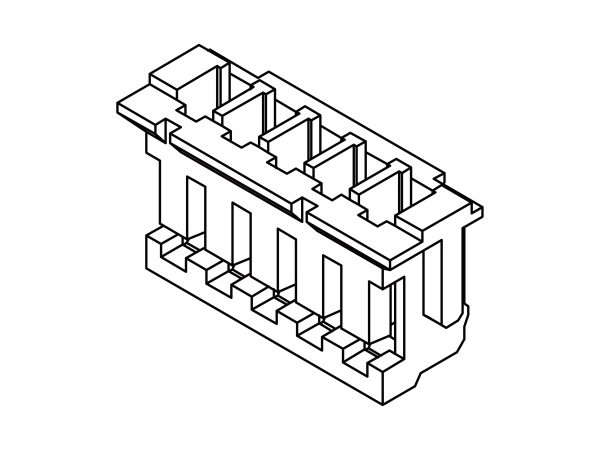

    1501xxHAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.8
    Type Housing
    Pitch 1.50 mm (0.059″)
    Contact Type Wire to Board
    Series 1501
    Current rating 1A AC / DC
    Voltang rating 100V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 500M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.6 ~ 1.2 mm (0.024″ to 0.047″)
    Circuits 02 – 15P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #26~#32
