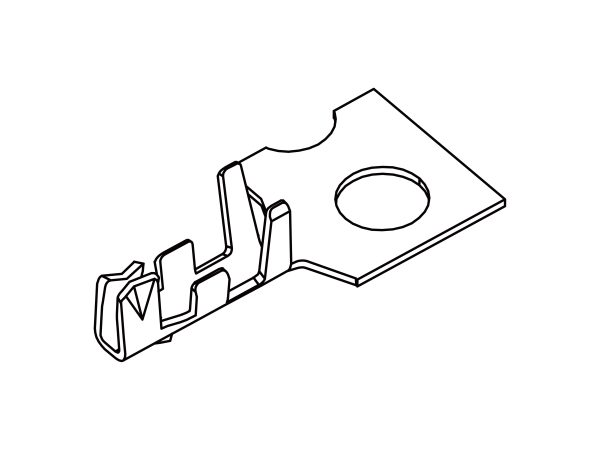

    125100TCxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.4
    Type Terminal
    Pitch 1.25 mm (0.049″)
    Contact Type Wire to Board
    Series 1251
    Current rating 1A  AC / DC
    Voltang rating 100V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm (0.039″ to 0.063″)
    Material Phosphor bronze
    Drawing Drawing PDF Download
    Applicable wires AWG #26~#32
    Insulation O.D 0.5 ~ 1.1 mm
    Finishing Tin plated / Tin Pre-plated
