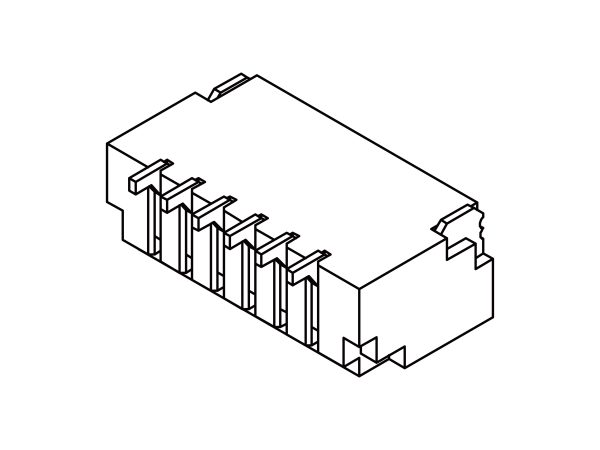

    1001xxWExxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.7
    Type Wafer
    Pitch 1.00 mm (0.039″)
    Contact Type Wire to Board
    Series 1001
    Current rating 1A AC /DC
    Voltang rating 50V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 100M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm (0.032″ to 0.063″)
    Circuits 02 – 20P
    Material Nylon 6T UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #28~#32
    Insulation O.D 0.4 ~ 0.8 mm
